Easi π(pi) Transmitter : Concept Abstract + Description.

easi
π (pi) alludes to the circular geometries embodied in the design.

easi
π is designed, as an ergonomic, minimal, and contemporary device to control the light intensity and color temperature of multiple groups of lighting fixtures.

easi

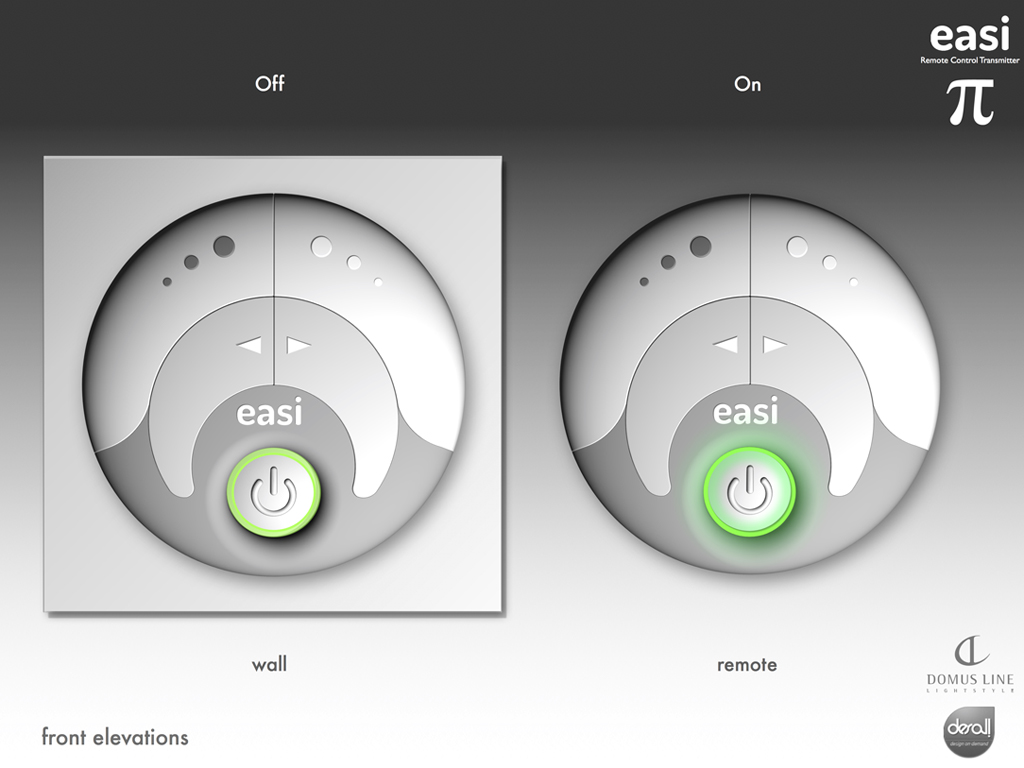

π : Description

easi
π consists of two components, a soft circular transmitter unit with integrated battery compartment and magnet for attaching to a wall bracket. The wall bracket, with keyhole attachment slots, has a recessed area with a metal plate to orientate and receive the transmitter unit.

easi
π has a neutral gray palette, in 3 tones of gray, delineating the button functions. The On/Off button function is highlighted with a backlit LED ring indicating the ‘ON’ mode.

easi
π has 5 button functions as described in the design brief. Haptic design principles are integrated into the 2 buttons operating the light intensity and color temperature with 3 graduated raised dots. The 2 buttons operating lighting zones are indicated with raised triangular arrow icons. The On/Off button has a raised international icon.

easi
π is targeted at the home environment with applications for use in kitchen cabinet fixtures, pendant and recessed downlights.

easi π has a AAA battery compartment with a sliding access cover. The cover incorporates a magnetic pad enabling attachment to the wall bracket, or other magnetic surfaces e.g. refrigerator doors, steel cabinets etc.

easi π components are recyclable Injection moulded ABS with matte non-slip textures.

easi π transmitter unit measures 70mmØ x 22mm. The Wall bracket measures 88mm x 4mm.
